Deep Dive into State Transitions: Understanding Triggers and Guards

State machine diagrams provide a rigorous method for modeling the behavior of systems. At the heart of these diagrams lie the mechanisms that define movement: state transitions. Without a clear understanding of how a system moves from one condition to another, the logic becomes ambiguous and prone to failure. This guide explores the mechanics of transitions, focusing specifically on triggers and guards. These elements dictate not just if a change occurs, but when and under what conditions it is permissible.

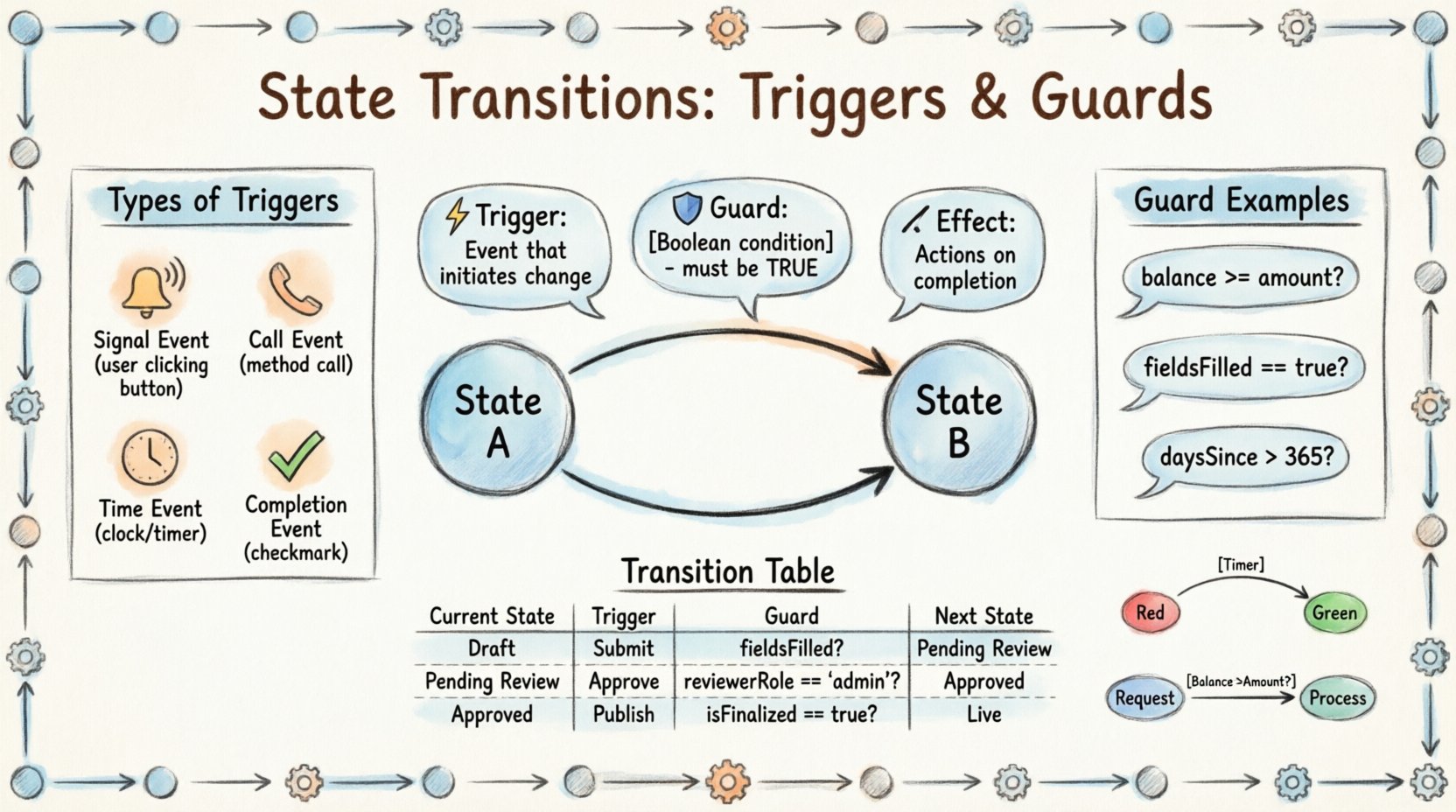

Hand-drawn infographic explaining state machine transitions: shows anatomy of a transition with trigger (event that initiates change), guard (boolean condition that must be true), and effect (actions on completion); illustrates four trigger types (signal, call, time, completion events) with icons; displays guard condition examples like balance>=amount and fieldsFilled==true; includes mini transition table with Draft→Submit→Pending Review workflow; features practical examples of traffic light timer transition and banking withdrawal guard logic; clean sketch style with watercolor accents, 16:9 layout for educational content about system behavior modeling”/></figure> </div> <h2>What is a State Transition? 🌊</h2> <p>A state represents a distinct mode of operation within a system. A transition represents the change from one state to another. This is not merely a visual line on a diagram; it is a logical event that alters the internal context of the application. When a transition occurs, the system discards the current state and enters a new one, potentially executing specific logic during the process.</p> <p>Consider a simple traffic light system. It moves from Red to Green. This is a transition. However, it does not happen arbitrarily. It waits for a timer to expire. In this scenario:</p> <ul> <li><strong>State:</strong> Red Light</li> <li><strong>Transition:</strong> Change to Green Light</li> <li><strong>Trigger:</strong> Timer Expiration</li> </ul> <p>The transition is the action. The trigger is the catalyst. The guard is the permission slip. Understanding the distinction is vital for architects and developers designing robust logic.</p> <h2>The Anatomy of a Transition 🧩</h2> <p>In standard modeling notation, a transition is often described using a specific syntax. A complete transition definition typically includes three components:</p> <ol> <li><strong>Trigger:</strong> The event that initiates the possibility of a transition.</li> <li><strong>Guard:</strong> The Boolean condition that must evaluate to true for the transition to proceed.</li> <li><strong>Effect:</strong> The actions performed upon successful completion of the transition.</li> </ol> <p>When multiple transitions exist between the same states, the system must determine which one to execute. This decision is based on the order of evaluation and the satisfaction of guards. If multiple guards are true, the first defined transition typically takes precedence, though this depends on the specific implementation logic.</p> <h2>Deep Dive into Triggers ⚡</h2> <p>A trigger is the signal that wakes up the state machine. It is the external or internal event that demands attention. Without a trigger, a state machine remains static, regardless of how many other states it knows. Triggers can take various forms depending on the complexity of the system.</p> <h3>Types of Triggers</h3> <ul> <li><strong>Signal Events:</strong> An asynchronous message sent to the system. For example, a user clicking a button or a sensor detecting motion.</li> <li><strong>Call Events:</strong> A method invocation. This is synchronous and often used in procedural implementations.</li> <li><strong>Time Events:</strong> The passage of time. This includes timeouts or delays. For instance, waiting 30 seconds before timing out a session.</li> <li><strong>Completion Events:</strong> The finishing of a process. When an internal action completes, it may trigger a transition to the next state.</li> </ul> <h3>Trigger Evaluation Order</h3> <p>When a system receives a trigger, it does not immediately jump to a new state. It scans all outgoing transitions from the current state to find those that match the trigger. This scanning process follows specific rules:</p> <ul> <li><strong>Matching:</strong> Does any transition list this trigger? If not, the event is ignored or handled by a default mechanism.</li> <li><strong>Conflict Resolution:</strong> What if two transitions match the same trigger? The system usually evaluates guards to resolve the ambiguity.</li> <li><strong>Priority:</strong> Some systems assign priority to specific transitions, ensuring that critical paths are evaluated first.</li> </ul> <p>If no transition matches the trigger, the event is typically discarded. This behavior ensures that the system does not enter an undefined state due to unexpected inputs.</p> <h2>Deep Dive into Guards 🛡️</h2> <p>While a trigger asks, “What happened?”, a guard asks, “Is it okay to proceed?”. A guard is a Boolean expression attached to a transition. It acts as a filter. Even if the correct trigger fires, the transition will not occur unless the guard evaluates to true.</p> <h3>Why Use Guards?</h3> <p>Guards add conditional logic to the flow without cluttering the state definitions themselves. They allow the same transition trigger to lead to different outcomes based on the current data context.</p> <ul> <li><strong>Validation:</strong> Ensuring data meets requirements before changing state (e.g., checking if a cart total is positive).</li> <li><strong>Business Rules:</strong> Enforcing policies (e.g., allowing a refund only if the order is within 30 days).</li> <li><strong>Resource Availability:</strong> Checking if a necessary resource exists before proceeding (e.g., checking if a printer is online).</li> </ul> <h3>Guard Syntax and Logic</h3> <p>Guards are typically written as mathematical or logical expressions. They access the current state data and the event parameters. Common operators include:</p> <ul> <li><strong>Comparison:</strong> <code>value > 100</code>, <code>status == 'active'</code></li> <li><strong>Logical Operators:</strong> <code>AND</code>, <code>OR</code>, <code>NOT</code></li> <li><strong>Membership:</strong> <code>items.contains('discount')</code></li> </ul> <p>If a guard evaluates to false, the transition is blocked. The system remains in the current state. The trigger is consumed, but no state change occurs. This is a crucial distinction from a missing trigger. The event was handled, but the condition was not met.</p> <h2>Interaction Between Triggers and Guards 🤝</h2> <p>The relationship between triggers and guards determines the robustness of the system. A common pitfall is relying solely on triggers and assuming the system will handle all edge cases. Guards provide the necessary safety net.</p> <p>Consider a withdrawal process in a banking system. The trigger might be “Request Withdrawal”. However, the guard might be “Balance >= Amount”. If the user requests a withdrawal of $1000 but the balance is $500, the guard fails. The state remains “Balance Check” rather than moving to “Processing”.</p> <p>This separation of concerns allows for cleaner design. The trigger defines the <em>intent</em>, while the guard defines the <em>feasibility</em>.</p> <h2>Visualizing Transitions with Tables 📊</h2> <p>While diagrams are excellent for high-level visualization, transition tables are often superior for detailed specification and testing. A transition table lists every possible combination of current state, trigger, and guard condition, mapping them to the resulting state.</p> <p>Here is an example structure for a document processing system:</p> <table> <thead> <tr> <th>Current State</th> <th>Trigger</th> <th>Guard Condition</th> <th>Next State</th> </tr> </thead> <tbody> <tr> <td>Draft</td> <td>Submit</td> <td><code>fieldsFilled == true</code></td> <td>Pending Review</td> </tr> <tr> <td>Draft</td> <td>Submit</td> <td><code>fieldsFilled == false</code></td> <td>Draft</td> </tr> <tr> <td>Pending Review</td> <td>Approve</td> <td><code>approvedByManager == true</code></td> <td>Published</td> </tr> <tr> <td>Pending Review</td> <td>Reject</td> <td><code>true</code></td> <td>Draft</td> </tr> <tr> <td>Published</td> <td>Archive</td> <td><code>daysSince > 365</code></td> <td>Archived</td> </tr> </tbody> </table> <p>Using a table like this helps identify gaps in logic. If a row is missing for a specific trigger, it implies that the event is invalid for that state, which can be a source of bugs if not explicitly documented.</p> <h2>Common Patterns and Anti-Patterns 🚦</h2> <p>Designing state transitions involves recognizing patterns that work well and avoiding those that create complexity.</p> <h3>Effective Patterns</h3> <ul> <li><strong>Self-Transitions:</strong> A transition that starts and ends in the same state. This is useful for handling internal events without changing the core mode. For example, logging an error while remaining in the “Error Handling” state.</li> <li><strong>Parallel States:</strong> When multiple independent states exist simultaneously, transitions in one should not block the other. This requires careful synchronization.</li> <li><strong>Default Transitions:</strong> Using a default guard (e.g., <code>true</code>) to catch any unmatched triggers, ensuring no event is silently ignored.</li> </ul> <h3>Anti-Patterns to Avoid</h3> <ul> <li><strong>Spaghetti Transitions:</strong> A web of lines crossing over each other without clear structure. This makes maintenance difficult. Group related transitions together.</li> <li><strong>Guard Overload:</strong> Placing complex logic inside guards makes the diagram unreadable. If a guard requires more than three conditions, consider moving the logic to an action or a separate service.</li> <li><strong>Missing Error States:</strong> Failing to define a state for when a transition is impossible. Every trigger should have a defined outcome, even if it means staying in the current state.</li> </ul> <h2>Implementation Considerations ⚙️</h2> <p>Translating a diagram into code requires discipline. The logical structure should mirror the visual model as closely as possible to maintain consistency.</p> <h3>Data Flow</h3> <p>Guards often need access to data. Ensure that the state machine has a mechanism to query the current data context. This is often achieved through a shared context object or a repository pattern. The state machine itself should not manage data persistence; it should manage flow.</p> <h3>Asynchronous Handling</h3> <p>Triggers often arrive asynchronously. In a multi-threaded environment, race conditions can occur. If two triggers arrive simultaneously, the order of processing matters. The state machine implementation must queue events or lock the state during evaluation to prevent inconsistent transitions.</p> <h3>History States</h3> <p>Sometimes a system needs to remember where it left off. History states allow a transition to return to a specific sub-state within a composite state. This is particularly useful for multi-step wizards or complex workflows where users may navigate back and forth.</p> <h2>Debugging State Machine Logic 🔍</h2> <p>When a system behaves unexpectedly, state machines can be difficult to trace because the state is invisible until it changes. Effective debugging requires visibility into the transition path.</p> <h3>Logging Strategy</h3> <p>Implement comprehensive logging at the transition level. Every time a transition is evaluated, log:</p> <ul> <li>The current state.</li> <li>The incoming trigger.</li> <li>The guard evaluation result (true/false).</li> <li>The resulting state (or if it was blocked).</li> </ul> <p>This creates an audit trail that helps reconstruct the sequence of events leading to a bug.</p> <h3>Testing Scenarios</h3> <p>Unit tests should cover every row in the transition table. For each state and trigger combination, assert the expected next state. This ensures that guards are functioning correctly and that no accidental transitions are possible.</p> <ul> <li><strong>Happy Path:</strong> Verify successful transitions work as designed.</li> <li><strong>Edge Cases:</strong> Test boundary conditions in guards (e.g., exactly 0 vs 1).</li> <li><strong>Invalid Inputs:</strong> Ensure invalid triggers do not cause crashes or undefined states.</li> </ul> <h2>Summary of Best Practices ✅</h2> <p>To maintain a healthy state machine architecture, adhere to these core principles:</p> <ul> <li><strong>Clarity:</strong> Keep transitions simple. If logic is complex, move it out of the guard.</li> <li><strong>Completeness:</strong> Define behavior for all possible triggers in every state.</li> <li><strong>Consistency:</strong> Use standard naming conventions for triggers and states.</li> <li><strong>Documentation:</strong> Keep the diagram and the code synchronized. If the code changes, the diagram must be updated.</li> <li><strong>Validation:</strong> Use guard conditions to validate data before changing state, not after.</li> </ul> <p>By treating triggers and guards as the fundamental building blocks of system behavior, designers can create systems that are predictable, testable, and maintainable. The transition is not just a line on a page; it is the heartbeat of the logic, pulsing with the energy of events and the discipline of conditions.</p><div class='yarpp yarpp-related yarpp-related-website yarpp-template-thumbnails'> <!-- YARPP Thumbnails --> <h3>Related posts:</h3> <div class= State Diagram Basics: A Beginner’s Quick Start Guide to Visualizing System LogicState Diagram Basics: A Beginner’s Quick Start Guide to Visualizing System Logic State Diagrams vs. Flowcharts: Key Differences for Systems Analysis StudentsState Diagrams vs. Flowcharts: Key Differences for Systems Analysis Students Default ThumbnailHow to Build State Diagrams Step-by-Step: From Concept to Final Diagram Common State Diagram Mistakes That Confuse Beginners and How to Fix ThemCommon State Diagram Mistakes That Confuse Beginners and How to Fix Them
