Best Practices for Clean Flow Documentation

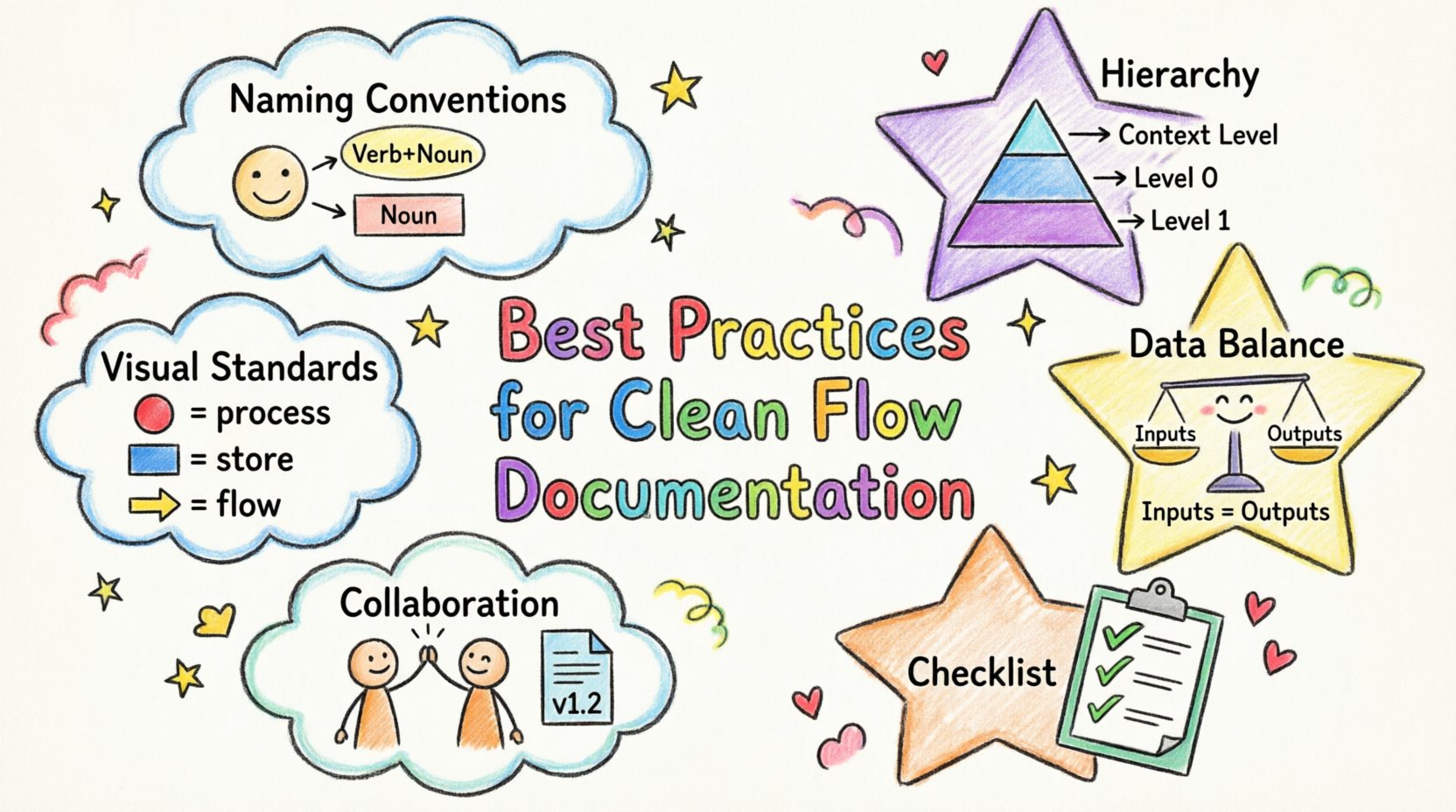

Child-style hand-drawn infographic summarizing best practices for clean Data Flow Diagram documentation: naming conventions with Verb-Noun processes, hierarchical decomposition from Context to Level 1, visual standards for shapes and arrows, data balance principles, collaboration tips, and a quality checklist - all illustrated with playful crayon aesthetics, bright colors, simple shapes, and friendly icons for accessible learning

Effective system design relies heavily on clear communication. Data Flow Diagrams (DFDs) serve as the blueprint for understanding how information moves through a system. When these diagrams are cluttered or inconsistent, they obscure logic rather than reveal it. Clean flow documentation bridges the gap between technical complexity and human understanding. This guide outlines the standards required to produce diagrams that are accurate, maintainable, and easy to interpret. Clarity in documentation reduces the time spent explaining architecture to new team members. It also minimizes the risk of logic errors during implementation. By adhering to established conventions, teams ensure that the visual representation matches the actual behavior of the software. The following sections detail the specific practices that contribute to high-quality flow documentation.

1. Naming Conventions for Consistency 🏷️

Naming is the foundation of readability. Ambiguous labels force readers to guess the function of a component. Consistent naming conventions allow stakeholders to navigate complex diagrams without constant reference to a legend or external glossary.

Process Labels

Processes represent actions or transformations of data. Every process label should follow a Verb-Noun structure. This format immediately communicates what is happening and what data is involved.

Good: Calculate Tax, Validate User, Generate Report
Bad: Tax, User, Report

Using only nouns makes it unclear whether the shape represents storage or an action. Verbs imply activity. If a shape is a rectangle or circle representing a process, the text inside must describe the action taken on the data flowing through it.

Data Store Names

Data stores represent where information rests. These should use Noun phrases only. Avoid verbs in store names, as storage is passive. Use names that reflect the content rather than the operation.

Good: Customer Records, Transaction Log, Inventory Database
Bad: Save Customer, Store Inventory

Consistency here helps distinguish between where data lives and what happens to it. If a diagram shows a process named “Save Customer” and a store named “Customer Records”, the distinction is clear. If both are nouns, confusion arises.

External Entity Names

External entities are sources or destinations outside the system boundary. Name them using the specific role or system they represent. Avoid generic terms like “User” unless the system handles multiple distinct types of users that require differentiation.

2. Managing Diagram Hierarchy 📚

A single diagram rarely captures the entire complexity of a modern system. Attempting to fit every detail into one view leads to clutter. Hierarchical decomposition allows you to break a system into manageable layers. Each layer provides a different level of granularity.

Context Level (Level 0)

The Context Diagram provides the highest-level overview. It shows the entire system as one process and its interactions with external entities. There are no internal processes or data stores shown at this level. It defines the boundary of the system clearly.

One central process representing the whole system.
All external entities connected directly to this process.
Only major data flows entering or leaving the system.

Level 0 and Beyond

Level 0 diagrams decompose the central process from the Context Diagram into major sub-processes. This is where data stores and internal flows first appear. As you move to Level 1, Level 2, and so on, you drill deeper into specific sub-processes. Key rule: A data store created at Level 1 must not appear in the Level 0 diagram unless it is explicitly part of the external boundary. Internal storage is hidden until you zoom in. This prevents cognitive overload for the reader.

Consistency Across Levels

When decomposing a process, ensure the inputs and outputs match the parent process. If the parent process receives “Order Data”, the child processes must collectively account for that input. Do not introduce new external entities in lower-level diagrams that were not present in the parent level.

3. Visual Standards and Geometry 📐

Visual consistency aids quick recognition. Users should be able to identify a data store or a process within milliseconds based on shape and color. Standardizing these elements reduces the cognitive load during diagram review.

Shapes and Symbols

While styles vary, the semantics of shapes should remain constant across all diagrams in a project.

Shape	Represents	Label Style
Circle or Rounded Rectangle	Process	Verb + Noun
Open Rectangle or Parallel Lines	Data Store	Noun Phrase
Rectangle	External Entity	Noun (Role/System)
Arrow	Data Flow	Noun Phrase (Content)

Line Crossing and Routing

Lines should not cross unnecessarily. Crossing lines create visual noise and make it difficult to trace a specific flow. Use orthogonal routing (90-degree angles) for connections. This creates a grid-like appearance that is easier to scan. If lines must cross, do not merge them. Use an explicit bridge symbol or simply ensure the crossing point does not look like a junction. A junction implies data merging, while a crossing implies no interaction.

Arrow Directionality

Every arrow must have a clear head indicating the direction of data movement. Never use lines without heads unless the flow is bidirectional, in which case use two distinct arrows. Consistent arrowheads prevent ambiguity about which way information travels.

4. Data Integrity and Balancing ⚖️

A critical aspect of DFDs is ensuring that data is balanced across levels. This means the inputs and outputs of a parent process must match the aggregated inputs and outputs of its child processes.

Input/Output Balance

If a Level 0 process receives “Payment Info”, the child processes must show where that information goes. It cannot disappear. If a data flow enters a process, it must either be transformed into a new flow, stored, or leave the system. Data cannot be created or destroyed within a process without being accounted for.

Black Holes and Miracles

Avoid creating processes with no inputs (Miracles) or no outputs (Black Holes). A process with no input suggests data is appearing from nowhere. A process with no output suggests data is vanishing. Both violate the conservation of data principle. Every process must transform input into output.

Flow Naming

Label every data flow. An arrow without a label is useless. The label should describe the content, not the action. For example, use “Customer ID” instead of “Send ID”. This keeps the diagram focused on data rather than protocol.

5. Collaboration and Maintenance 🔄

Documentation is not a one-time task. Systems evolve, and diagrams must evolve with them. A diagram that is accurate today may be obsolete tomorrow if not maintained.

Version Control

Track changes to diagrams over time. Include a version number and a date on every diagram. Maintain a change log that explains what was modified and why. This history is vital for debugging issues later or understanding why a specific design decision was made.

Review Cycles

Establish a routine for reviewing diagrams with developers and stakeholders. Technical accuracy is as important as visual cleanliness. A diagram can look perfect but contain logical errors. Regular reviews ensure the visual model reflects the actual implementation.

Accessibility

Ensure diagrams are accessible to all team members. Avoid using color alone to convey meaning. If you use colors to distinguish between different types of flows, also use labels or line styles. This ensures that diagrams remain readable for those with color vision deficiencies.

6. Documentation Checklist ✅

Before publishing a diagram, run through this checklist to ensure quality standards are met.

Criteria	Requirement
Process Naming	All processes use Verb-Noun format?
Data Store Naming	All stores use Noun phrases?
Flow Balance	Inputs/outputs match between parent and child levels?
No Orphans	Every entity is connected to at least one process?
Label Clarity	Are all data flows labeled with content names?
No Crossing Lines	Are unnecessary line crossings avoided?
Versioning	Is the version number and date included?

7. Avoiding Ambiguity 🚫

Ambiguity is the enemy of documentation. If a reader has to ask “What does this mean?”, the diagram has failed. Ambiguity often stems from overloading a single shape with multiple meanings.

Single Responsibility

Do not use one shape to represent both a human user and a system interface. Distinguish between external entities and internal interfaces. If a human interacts with the system, show the human. If the system interacts with another system, show the system. This distinction clarifies the boundary of responsibility.

Contextual Labels

Ensure labels are specific to the context. A flow named “Data” is too vague. Specify “Order Data” or “User Profile Data”. Specificity reduces the need for mental mapping by the reader.

8. The Impact of Clean Documentation 🎯

Investing time in clean flow documentation yields long-term benefits. It accelerates the onboarding of new engineers who can read the diagrams to understand the architecture. It aids in auditing processes to ensure compliance with regulations. It supports testing efforts by clarifying expected data paths. When documentation is clean, the focus shifts from deciphering the map to analyzing the terrain. Teams spend less time debating what a shape means and more time solving actual problems. This shift in focus drives productivity and reduces frustration. Adopting these practices creates a culture of clarity. It signals that the team values precision and understands the importance of communication in software development. Over time, this discipline becomes second nature, resulting in a more robust and maintainable system ecosystem.

Summary of Key Standards 📝

To summarize, maintaining clean flow documentation requires discipline in naming, hierarchy, visual design, and maintenance. Adhering to the standards outlined above ensures that Data Flow Diagrams serve their primary purpose: to communicate system logic clearly. By focusing on consistency and accuracy, teams can build documentation that stands the test of time and change. Start by auditing your current diagrams against the checklist. Identify areas where naming is inconsistent or where hierarchy is unclear. Make incremental improvements rather than attempting a full overhaul at once. Small, consistent changes lead to significant gains in quality over time.
